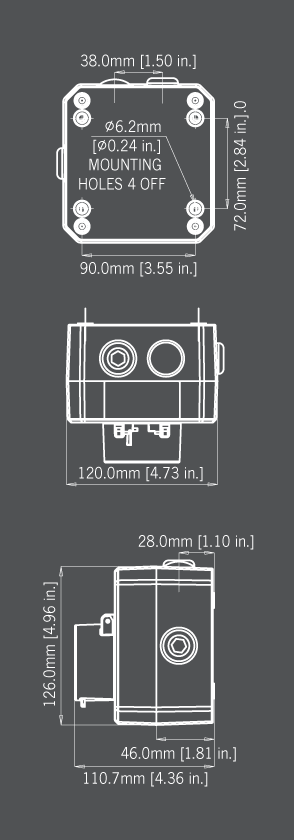

| GNExCP6A: | II 2G Ex d e IIC T6 Gb II 2D Ex t IIIC T60°C Db IP66 |
| Ambient: | Ta = -40°C to +55°C [-40° to +131°F] |
| Ingress protection: | IP66 |
| Housing material: | GRP – glass reinforced polyester (UV stable) |
| Colour: | RAL3000 Red (others available on request) |
| Cable entries: | 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries. |
| Stopping plugs: | 2 x Ex e nylon plugs as standard Brass and stainless steel plugs optional |
| Terminals: | 6 × 4.0mm² cables. |
| Weight: | 1.3Kg/2.86Ibs |
| Note: | For applications requiring monitoring resistors, diodes or inidcator LED’s please see the GNExCP6B-PT version. Data sheet reference: 1.3.09. |
| Version: | Part code: | |
|---|---|---|
| Product type: | GNExCP6A-PT | A type – no end of line devices |
| Switch Type: [s] | S D |
SPCO DPCO |
| Stopping plug material: [m] |
N B P S |
Nylon Brass Nickel Plated Stainless Steel |
| Duty label [d]: | N P S |
No duty label Metalised Polyester Stainless Steel |
| Enclosure colour: [x] | RD BL GN YW RW YB BK |
Red Blue Green Yellow Red/White Yellow/Black Black |
| Example: | GNExCP6A-PT[s][m][d][x] GNExCP6A-PT-S-N-N-RD GNExCP6A call point – Tool Reset type - Single Pole switch – Nylon stopping plugs - No duty label required – Red colour housing |
|
| Accessories: | SP65-0001-A2 SP65-0001-A4 SP65-0002-A2 SP65-0002-A4 |
Pole Mount Bracket Kit 2" St/St A2 (304) Pole Mount Bracket Kit 2" St/St A4 (316) Sunshade – St/St A2 (304) Sunshade – St/St A4 (316) |
| Version: | Voltage: | Switch rating: | Terminals: | Cable entries: |
|---|---|---|---|---|
| GNExCP6A | 250V ac Max. 50V dc Max. |
5.0A Max. 1.0A Max. |
6 × 4mm² | 2 x M20 Top/Bottom 1 x M20 Left/Right |
| Coding: | II 2G Ex d e IIC T6 Gb Ta = -40°C to +55°C II 2D Ex t IIIC T60°C Db IP66 |
|||
