Light source: | High output L.E.D. |
Light output: | 15 x L.E.D. array |
Function: | Permanent |
L.E.D. colours: | Amber, Blue, Green, Red, White |
Peak/Effective Intensity cd: | 54 cd* – measured ref. to I.E.S. |
Lens type: | Prismatic |
Mounting: | Surface mount (Wall mount bracket available) |
Entries: | 1 × 5-7mm push through grommet 1 x M20 cable entry |

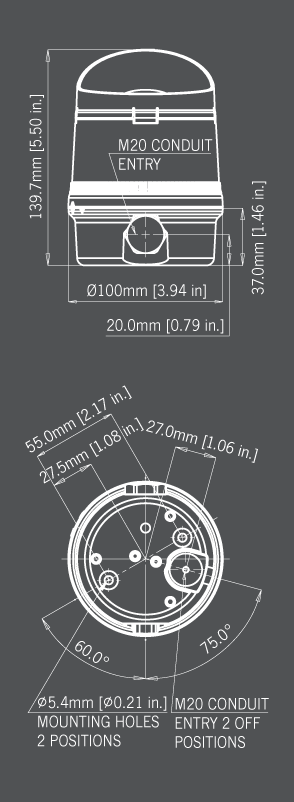

Dimensions: | ø100 x 140mm |
Ingress protection: | IP65 |
Housing material: | High impact UL94 V0 (f1) PC |
Terminals: | 0.5 to 1.5mm² |
Operating temp: | -25 to +50°C [-13° to +122°F] |
Storage temp: | -40 to +70°C [-40° to +158°F] |
Relative humidity: | 90% at 20°C [68°F] |
Weight: | 350g/0.77Ibs |
Version: | Current mA: | |
---|---|---|
Version: | Current mA: | |
10-30V dc | 110mA | |
90-230V ac | 50/60Hz | 10-30mA |
Version: | Part code: |
---|---|
10-30V dc | B350TLA030B/[x] |
90-230V ac 50/60Hz | B350TLA230B/[x] |
[x] = Lens colour: | A: Amber B: Blue G: Green R: Red W: White |
Note: B350TLA units are supplied with ‘clear’ lenses to maximise the light output in environments with high ambient light levels. | |
Mounting brackets: | Description: |
MB-B350T-S | Mounting bracket kit for a single B350 type unit. |
MB-B350T-M | Mounting bracket kit for linked multiple B350 type units |
Note: Multiple unit connector is supplied with each product. |
