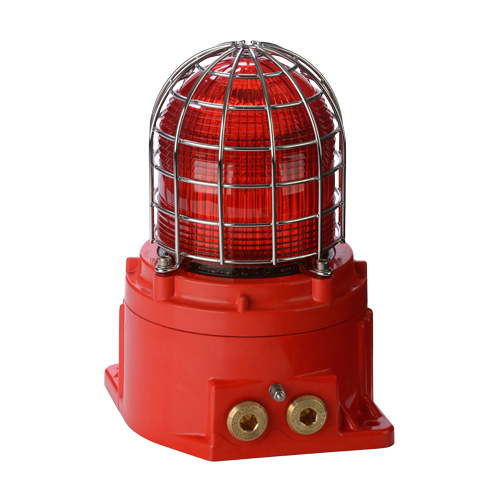

GNExB2LD2 LED Multifunction Beacon 1-21-054

Description

The GNExB2LD2 utilises an array of high power Cree® LED’s, orientated to optimise visibility in any direction. The beacon can be configured as a steady beacon with a light output of up to 174 candela. Alternatively, for warning applications, five flashing modes, with a light output of up to 338 candela. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled. The field replaceable colour filter enhances the light output and is constructed from UV stable PC. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.

Downloads

Datasheet	Datasheet.pdf
Install manual: Product version [A]	D156-01-401-IS_Issue_3__GNExB2LD2_.pdf
Installation Manual - Russian	D156-00-401-IS-RUS_Issue_2_GNExB2LD2.pdf
INMETRO Installation Manual	D156-00-401-IS-IEx_Issue_B_GNExB2LD2.pdf
IECEx certificate	IECEx_UL_15.0003X_Issue_5_GNExB_J_H.pdf
ATEX certificate	DEMKO_15_ATEX_1448X_Rev._6_GNExB_J_H.pdf
UL certificate of compliance	UL_CoC-20211025-E245313_Vol2_Sec1_GNEx.pdf
UKCA Certificate	UL21UKEX2136X_Rev._2_GNExB_J_H.pdf
CCOE PESO	COOE_P579164_GNExB1_GNExB2.pdf
INMETRO certificate	IEx20.0049X_R1_GNExB2_GNExJ2.pdf
Ex EAC TR CU 012/2011 Certificate	RU_-GB.65..01252_21.pdf
ECAS Ex Approval	24-07-116025_E24-07-119724_NB0007_GNExB__GNExH.pdf
Ingress Protection certificate	CoTC_104611_Issue_2_GNExS-L-B-J.pdf
Declaration of Conformity	DC-037_Issue_H_GNExB_GNExJ.pdf
Declaration of Conformity UKCA	DC-098_Issue_A_GNExB1_B2_J2_UKCA.pdf
SIL Certificate: Product version [A]	T900-123_4_SIL2_SIL1_2H__D1xB2_STExB2_GNExB_BExBG_.pdf
2D drawing (PDF)	D156-05-201_Issue_2.pdf
2D drawing (DWG)	D156-05-201_Issue_2.DWG
3D drawing (STEP)	D156-05-201-3D_Issue_1_GNExB2_.STEP
Wiring Schematic	D156-06-401_Issue_C_GNExB2LD2_.pdf
Nameplate Drawing	D156-09-401_Issue_1_GNExB2LD2_.pdf
Equipment Tag Drawing	D254-00-101_Issue_1.pdf
Duty Label Drawing	D254-00-001_Issue_1.pdf
Pole Mount & Sun Shade Drawing	D217-05-231_Issue_1__GNExB2_.pdf

Features

Five flash rates: 1Hz, 1.33Hz, 2Hz, double and triple flash.
Automatic synchronisation on multi-beacon systems
High and low power Steady modes
Three remotely selectable stages/channels on DC versions.
A4 316 Stainless Steel guard included as standard
UV stable polycarbonate lens colour filter – field replaceable
3 x cable entries
Stopping plugs included
Robust corrosion proof GRP (glass reinforced polyester) enclosure

Specification

Source:	Array of 4 x High Power Cree® LED’s
Modes:	1Hz flash (60 fpm) 1.5Hz flash (90 fpm) 2Hz flash (120 fpm) Double strike flash Triple strike flash High Power Steady Low Power Steady
Eff. Intensity cd:	338 cd – 1Hz flash
Eff. Intensity cd:	174 cd – High Power Steady
Lens colours:	Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltage DC:	24V dc (18-30Vdc)
Voltage AC:	115Vac (110-120Vac), 230Vac (220-240Vac)
In-rush @ 24Vdc:	1890mA within 0.22ms
LED life:	60,000 hours+
Safety Integrity Level:	SIL1 and SIL2 Route 2H IEC61508 (2010)
Ingress protection:	IP rating per EN60529:IP66/67 Type rating per UL50E/NEMA250:4/4X/3R/13
Lens material:	High impact Borosilicate glass
Enclosure material:	UV stable GRP (glass reinforced polyester)
Enclosure colour:	Natural Red
Enclosure finish:	Natural – can be painted in alternative colours
Cable entries:	Side: 3 x M20x1.5mm Stopping plugs included
Stopping plugs:	Brass, Nickel Plated or Stainless Steel
Terminals:	0.5 – 2.5mm² (20-14 AWG) Duplicated terminals
Ground/Earth stud:	M4
Line monitoring:	Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted
Line monitoring:	Blocking diode included EOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistor or diode (DC versions) can be fitted
Enclosure volume:	<2 litres
Installation temp:	-50° to +70°C (-58°F to +158°F)
Storage temp:	-50° to +70°C (-58°F to +158°F)
Relative humidity:	99% – tropicalised/conformal coated electronics
Weight:	3.5kg/7.7lbs
*All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Nominal Voltage:	Voltage range:	Steady High Power Nominal current:	Steady Low Power Nominal current:	Flashing 1Hz Nominal current:	Max. current:	In rush:
24Vdc	18-30Vdc	240mA	134mA	110mA	500mA	1890mA <0.22ms
115Vac	110-120Vac 50/60Hz	95mA	78mA	90mA	180mA	11150mA < 12ms
230Vac	220-240Vac 50/60Hz	48mA	37mA	45mA	100mA	670mA <12ms

Part Codes

Part Code:	Identifier:	Description:
Product type:	GNExB2
Type:	LD2	LED Multifunction Beacon
Voltage:	DC024 AC115 AC230	24Vdc (18-30Vdc) 115Vac (110-120Vac) 230Vac (220-240Vac)
Cable entries: [e]	A B C D E F G H I J	3 x M20x1.5mm 2 × 1/2" NPT – adaptors 2 × 3/4" NPT – adaptors 2 x M25x1.5mm – adaptors 1 × 1/2" NPT – adaptor 1 × 3/4" NPT – adaptor 1 x M25x1.5mm – adaptor 3 × 1/2" NPT – adaptors 3 × 3/4" NPT – adaptors 3 x M25x1.5mm – adaptors
Stopping plug/ adaptor material: [m]	B N S	Brass Nickel plated brass Stainless steel
Guard material: [s]	1 3 5	A4 316 Stainless Steel A4 316 St/St with Equip. Tag A4 316 St/St with Equip. Tag and Duty Label
Product version: [v]	A	UL, cUL, IECEx, ATEX, Ex EAC, PESO, INMETRO – SIL1 & SIL2
Product option: [o]	1 X	Standard product Custom configuration – contact E2S
Enclosure colour: [x]	R S	Red Special colour – contact E2S
Lens colour: [y]	A B C G M R Y	Amber Blue Clear Green Magenta Red Yellow
Accessories: SP65-0001-A4 SP65-0003-A4	Pole Mount Bracket Kit St/St A4 (316) Sunshade – St/St A4 (316)

Approvals

UL/cUL/ULC – File ref: E245313
IECEx UL 15.0003X
ATEX DEMKO 15ATEX1448X
UKCA certificate: UL21UKEX2136X
TR-CU Ex EAC certificate: RU С-GB.НА65.В.01252_21
PESO CCOE certified: P579164
INMETRO IEx 20.0049X
SIL1 & SIL2 compliant to IEC61508 (2010)

Assemblies

The GNExB2LD2 is available as a plated assembly configured with a GNEx type alarm horn sounder and additional
GNEx type Xenon strobe or LED beacons with or without a GNExJ2 Ex d junction box. Contact E2S for further information.

Coding

IECEx / ATEX
II 2G Ex db IIC T5 Gb Ta -50°C to +70°C
II 2G Ex db IIC T6 Gb Ta -50°C to +65°C
II 2D Ex tb IIIC T85°C Db Ta -50°C to +70°C
NEC Class / Zone
Class I Zone 1 AEx db IIC T5 Ta -50°C to +70°C
Class I Zone 1 AEx db IIC T6 Ta -50°C to +65°C
CEC Class / Zone
Ex db IIC T5 Ta -50°C to +70°C
Ex db IIC T6 Ta -50°C to +65°C
NEC / CEC Class / Div
Class I Div 2 Group ABCD T5 Ta -50°C to +70°C
Class I Div 2 Group ABCD T6 Ta -50°C to +65°C

Effective Candela lens colour factor

Amber	Blue	Clear	Green	Magenta	Red	Yellow
0.59	0.27	1.00	0.51	0.34	0.15	0.85

Multi-function patterns

Stage 1: [On board]	Stage 2: [Remote]	Stage 3: [Remote]
Steady High Power	Flashing 1Hz	Triple Strike
Steady Low Power	Flashing 1Hz	Triple Strike
Flashing 1Hz	2x Flash 2Hz	Triple Strike
Flashing 1.5Hz	Flashing 2Hz	Double Strike
Flashing 2Hz	Triple Strike	Triple Strike
Double Strike	Steady High Power	Triple Strike
Triple Strike	Flashing 2Hz	Double Strike
Note: Remote second and third stage on DC units only
Double strike: 150ms on, 150ms off x 2, 600ms off Triple strike: 150ms on, 150ms off x 3, 600ms off
