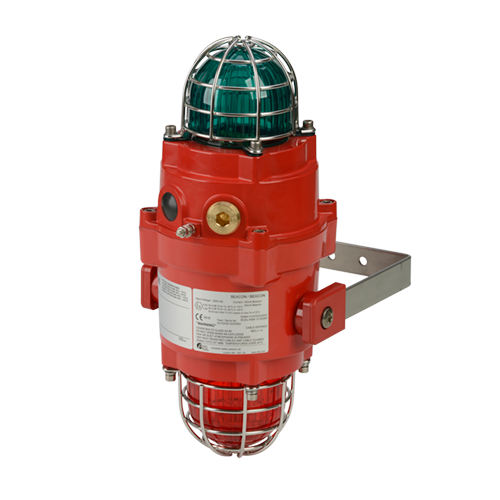

The BExCBGL2-L2D dual LED beacons robust construction enables installation in the harshest of environments. The beacons may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.
| Datasheet | Datasheet.pdf |
| Installation Manual | D210-01-721-IS_Issue_1_BExCBGL2-L2.pdf |
| INMETRO Installation Manual | D201-00-501-IS-IEx_Issue_A.pdf |
| IECEx certificate | IECEx_KEM_10.0024X_Issue_3_BExCBG.pdf |
| ATEX certificate | KEMA_01ATEX2222X_Issue_5_BExCBG.pdf |
| UKCA Certificate | UL22UKEX2637X_Rev_0_BExCBG.pdf |
| INMETRO certificate | IEx_19.0092X_R1_BExCBG.pdf |
| Ex EAC TR CU 012/2011 Certificate | RU_-GB.65..01252_21.pdf |
| Declaration of Conformity | DC-006_Issue_K_BExCBG.pdf |
| Declaration of Conformity UKCA | DC-107_Issue_A_BExCBG_UKCA.pdf |
| 2D drawing (PDF) | D210-05-701_Issue_2.pdf |
| 2D drawing (DWG) | D210-05-701_Issue_2.dwg |
| 3D drawing (STEP) | D210-05-701-3D_Issue_A.STEP |
| Wiring Schematic DC voltage | D210-06-711_Issue_1_BExCBGL2-L2D_DC.pdf |
| Wiring Schematic AC voltage | D210-06-725_Issue_1_BExCBGL2-L2D_AC.pdf |
| Nameplate Drawing | D210-09-721_Issue_1_BExCBGL2-L2D.pdf |
| Equipment Tag Drawing | D254-00-101_Issue_1.pdf |
| Duty Label Drawing | D254-00-001_Issue_1.pdf |
| Pole Mount & Sun Shade Drawing | D217-05-701_Issue_1__BExCBG_.pdf |
| Source: | Dual arrays of 4 x High Power Cree® LED’s |
| Modes: | 1Hz flash (60 fpm) 1.5Hz flash (90 fpm) 2Hz flash (120 fpm) Double strike flash Triple strike flash High Power Steady Low Power Steady |
| Eff. Intensity cd: | 87 cd – High Power Steady (each beacon) |
| Eff. Intensity cd: | 160 cd – 1Hz flash (each beacon) |
| Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltages DC: | 24vdc |
| Voltages AC: | 115vac; 230vac |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish – anti-corrosion. |
| Colour: | Red (others available on request) |
| Cable entries: | Dual M20 ISO (one stopping plug inc) |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
| Grounding stud: | M5 |
| Temperature range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| LED life: | 60,000 hours |
| Weight: | DC: 4.00kg/8.8Ibs AC: 4.35kg/9.57Ibs |
| *All candela data is representative of performance with clear lens at optimum voltage. | |
| Version: | Voltage: | Steady High Power: | Steady Low Power: | Flashing 1Hz: |
|---|---|---|---|---|
| 24V dc | 18-54V dc | 240mA | 134mA | 110mA |
| 115V ac | 103.5-126.5V ac 50/60Hz | 95mA | 78mA | 90mA |
| 230V ac | 207-253V ac 50/60Hz | 48mA | 37mA | 45mA |
| Current listed per beacon | ||||
| Part Code: | Identifier: | Description: | ||
|---|---|---|---|---|
| Product type: | BExCBGL2L2 | Explosion proof Dual LED Beacon | ||
| Type: | DP | Ex d, UV stable PC Colour Lenses | ||
| Voltage: | DC024 AC115 AC230 |
24V dc 115V ac 240V ac |
||
| Cable entries:[e] | A B C D E F G |
2 x M20x1.5mm 2 × 1/2" NPT – adaptors 2 × 3/4" NPT – adaptors 2 x M25x1.5mm – adaptors 1 × 1/2" NPT – adaptor 1 × 3/4" NPT – adaptor 1 x M25x1.5mm – adaptor |
||
| Stopping plug/ adaptor material: [m] |
B N S |
Brass Nickel Plated Stainless Steel |
||
| Bracket/guard matl & tag: [s] | 1 2 3 4 |
A2 304 Stainless Steel A4 316 Stainless Steel A2 304 St/St with Equip. Tag A4 316 St/St with Equip. Tag |
||
| Product version: [v] | A1 | Default – IECEx, ATEX | ||
| Enclosure colour: [x] | R S |
Red Special – contact E2S |
||
| 1st LED lens colour: [y] 2nd LED lens colour: [y] |
A B C G M R Y |
Amber Blue Clear Green Magenta Red Yellow |
A B C G M R Y |
Amber Blue Clear Green Magenta Red Yellow |
| Accessories: | SP65-0001-A4 SP65-0003-A4 |
Pole Mount Bracket Kit St/St A4 (316) Sunshade – St/St A4 (316) |
Assemblies:
The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact E2S sales.
| Amber | Blue | Clear | Green | Red | Yellow |
| 0.70 | 0.24 | 1.00 | 0.25 | 0.23 | 0.93 |
| Stage 1: [On board] |
Stage 2: [Remote] |
Stage 3: [Remote] |
|---|---|---|
| Steady High Power | Flashing 1Hz | Triple Strike |
| Steady Low Power | Flashing 1Hz | Triple Strike |
| Flashing 1Hz | 2x Flash 2Hz | Triple Strike |
| Flashing 1.5Hz | Flashing 2Hz | Double Strike |
| Flashing 2Hz | Triple Strike | Triple Strike |
| Double Strike | Steady High Power | Triple Strike |
| Triple Strike | Flashing 2Hz | Double Strike |
| Note: Remote second and third stage on DC units only | ||
| Double strike: 150ms on, 150ms off x 2, 600ms off Triple strike: 150ms on, 150ms off x 3, 600ms off |
||
