The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.

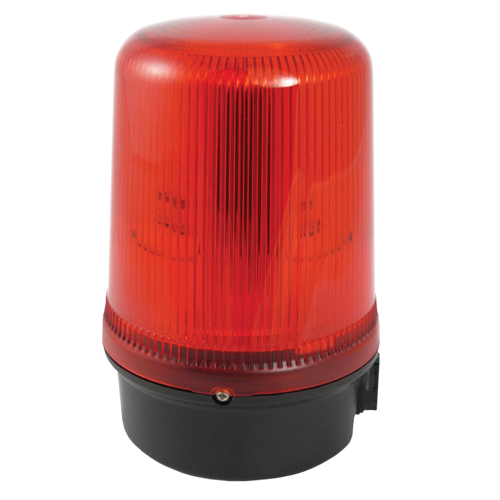

The B300STR Xenon beacon features an automatically synchronised flash rate of 1Hz (60 flashes per minute) as standard. The DC voltage versions also have user selectable 1.5Hz (90 flashes per minute) and double-strike flash rates. The double strike flash rate can be remotely activated via a third wire enabling a visual communication of a two stage alarm condition.
| Datasheet | Datasheet.pdf |
| Installation Manual | D112-00-001-IS_Issue_2__B300STR_.pdf |
| Russian EAC Declaration of Conformity | D-GB.GA05.B.12595-20-24.03.2025.pdf |
| Russian Maritime register | 19.00193.278.pdf |
| Declaration of Conformity | DC-026_Issue_G_Spectra.pdf |
| 2D drawing (PDF) | SK0011_Issue_B.pdf |
| 2D drawing (DWG) | SK0011_Issue_B.dwg |
| 3D drawing (STEP) | SK0011-3D_Issue_A.STEP |
| 2D drawing (PDF) | SK0051_Issue_B_B300RAB001_Right_angle_bracket_for_wall_mounting.pdf |
| 2D drawing (PDF) | SK0144_Issue_B_B300TMA001_Pole_mounting_assembly_140mm.pdf |
| Hi-res product image 1 (TIFF) | 2-13-030_B300STR-R.tif |
| Hi-res product image 2 (TIFF) | 2-13-030_B300STR-A.tif |
| Hi-res product image 3 (TIFF) | 2-13-030_B300STR-Y.tif |
| Lo-res product image 1 (JPG) | 2-13-030_B300STR-R.jpg |
| Lo-res product image 2 (JPG) | 2-13-030_B300STR-A.jpg |
| Lo-res product image 3 (JPG) | 2-13-030_B300STR-Y.jpg |
| Light source: | Xenon Strobe |
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| DC units: Optionally 1.5Hz & double strike |
|
| Alarm Stages: | DC units – 2 |
| Double strike pattern can be remotely switched | |
| Synchronisation: | 1Hz flash rate automatically synchronised |
| Peak Candela: | 500,000 cd – calculated from energy (J) |
| Effective Intensity cd: | 250 cd – calculated from energy (J) |
| Peak Candela: | 49,778 cd* – measured ref. to I.E.S. |
| Effective Intensity cd: | 125 cd* – measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear, Green, Red & Yellow |
| Lens type: | Prismatic (standard) or plain |
| Mounting: | Surface mount (right angle or pole mount accessories available) |
| Entries: | 1 × 5-7mm push through grommet 1 x M20 cable entry |
| Dimensions: | ø100 x 150mm |
| Ingress protection: | IP65 |
| Housing material: | High impact UL94 V0 (f1) PC |
| Lens material: | High impact UL94 V0 (f1) PC |
| Terminals: | 1.5 mm² flying lead assembly |
| Operating temp: | -25 to +50°C [-13° to +122°F] |
| Storage temp: | -40 to +70°C [-40 to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 370g/0.81Ibs |
| *Candela measurements representative of performance with clear lens at optimum voltage. | |
| Version: | Current: |
|---|---|
| 12V dc/ac | 500mA/600mA |
| 24V dc/ac | 250mA/300mA |
| 48V dc/ac | 175mA/250mA |
| 115V ac 50/60Hz | 70mA |
| 230V ac 50/60Hz | 35mA |
| Version: | Energy: | Part code: |
|---|---|---|
| 12V dc/ac | 5 Joules | B300STR012B/[y] |
| 24V dc/ac | 5 Joules | B300STR024B/[y] |
| 48V dc/ac | 5 Joules | B300STR048B/[y] |
| 115V ac | 5 Joules | B300STR115B/[y] |
| 230V ac | 5 Joules | B300STR230B/[y] |
| [y] = Lens colour: | A B C G R Y |
Amber Blue Clear Green Red Yellow |
| Accessory Part Code: | Description: | Model |
|---|---|---|
| B300RAB001 | Right angle bracket for wall mounting | B300 |
| B300TMA001 | Pole mounting assembly (140mm) | B300 |
