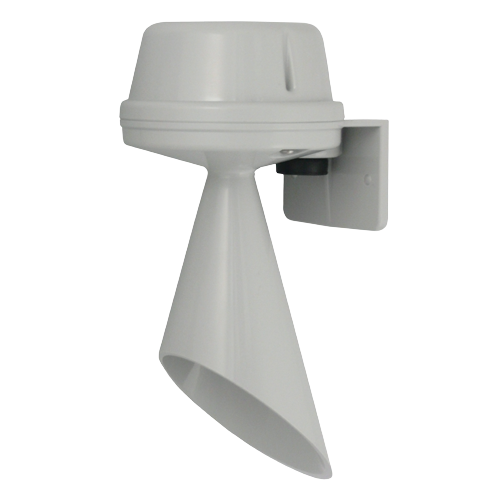

Rated for continuous use the H100 series is a compact, high output signal suitable for a variety of installations.
In addition to the ‘buzzer’ type sound the unit features a further two alarm sounds.
| Datasheet | Datasheet.pdf |
| Installation Manual | D152-00-001-IS_Issue_2__H100T_.pdf |
| Russian EAC Declaration of Conformity | D-GB.GA05.B.12595-20-24.03.2025.pdf |
| Russian Fire certificate | Russian_Fire_Certificate_-GB.25..03286.PDF |
| Russian Maritime register | 19.00193.278.pdf |
| Declaration of Conformity | DC-031_Issue_F_H100__H110.pdf |
| 2D drawing (PDF) | SK0059_Issue_B.pdf |
| 2D drawing (DWG) | SK0059_Issue_B.DWG |
| 3D drawing (STEP) | D152-00-001-3D_Issue_A.STEP |
| Hi-res product image 1 (TIFF) | 2-21-160_H100T.tif |
| Hi-res product image 2 (TIFF) | 2-21-160_H100T_GROUP.tif |
| No. of tones: | 3 |
| Output: | 100 dB(A) @ 1m [91dB(A) @ 10ft/3m] |
| Mounting: | Surface mount |
| Entries: | 1 × 5-7mm push through grommet |
| Dimensions: | 177.5 × 94.2mm |
| Ingress protection: | IP65 |
| Housing material: | High impact ABS (UL94V0 & 5VA) |
| Terminals: | 0.5 to 1.5mm² |
| Operating temp: | -25 to +50°C [-13° to +122°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [ 68°F] |
| MTBF DC: | 296.89 years / 2,600,780 hours – MIL 217 |
| MTBF AC: | 200.10 years / 1,752,848 hours – MIL 217 |
| Weight: | 148g/0.32Ibs |
| *SPL data +/-3dB(A). Measured at optimum voltage. | |
| Version: | Voltage: | Current: |
|---|---|---|
| 12-30V dc/ac | 12V dc | 10mA |
| 12-30V dc/ac | 24V dc | 24mA |
| 40-260V dc/ac | 48V dc | 15mA |
| 12-30V dc/ac | 12V ac 50/60Hz | 30mA |
| 12-30V dc/ac | 24V ac 50Hz | 62mA |
| 40-260V dc/ac | 48V ac 50/60Hz | 25mA |
| 40-260V dc/ac | 115V dc | 6mA |
| 40-260V dc/ac | 230V dc | 3mA |
| 40-260V dc/ac | 115V ac 50/60Hz | 19mA |
| 40-260V dc/ac | 230V ac 50/60Hz | 10mA |
| Version: | Part code: |
|---|---|
| 12-30V ac/dc | H100T030G |
| 40-260V ac/dc | H100T230G |
| Stage 1 | WAV file | Frequency Description. |
|---|---|---|
| T 1 | /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV | 800/1000Hz @ 7Hz Sweeping |
| T 2 | /system/1/assets/files/000/000/418/418/664b0e444/original/TF051.WAV | Simulated buzzer sound |
| T 3 | /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV | 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. |
| Country specific or custom tone configurations and alarm frequencies are available upon request. | ||
