D105AX Appello X 2-22-030

Product image
Product Image

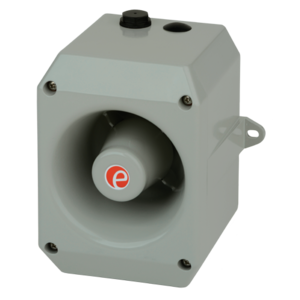

The D105AX Appello X is the next generation of user recordable alarm sounder capable of storing up to 2 minutes of content. The D105AX records, stores and plays back with unsurpassed clarity, user defined voice messages, music or sounds stored directly to non-volatile memory.
Request a quote for this product
Voltage
Enclosure Color
Version
Part Number:
D105AX
Request Price or enquire about this product
Enquire about
Appello X

Description

Low current consumption and CD quality reproduction in a robust die cast aluminium Type 4/4X/3R/13, IP66 enclosure ensures the D105AX Appello X is suitable for all general signalling applications including fire, security and process control.

Downloads

Datasheet Datasheet.pdf
Installation Manual D172-00-051-IS_Issue_B__D105AX_DL105AXX_DL105AXH_.pdf
UL certificate of compliance UL_CoC_-_20121214-S7995_Appello_X.pdf
Russian EAC Declaration of Conformity D-GB.GA05.B.12595-20-24.03.2025.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-032_Issue_J_Appello_X.pdf
2D drawing (PDF) SK0246_Issue_D.pdf
2D drawing (DWG) SK0246_Issue_D.DWG
Hi-res product image 1 (TIFF) 2-22-030_D105AX-G.tif
Hi-res product image 2 (TIFF) 2-22-030_D105AX-R.tif
Lo-res product image 1 (JPG) 2-22-030_D105AX-G.jpg
Lo-res product image 2 (JPG) 2-22-030_D105AX-R.jpg

Features

The D105AX Appello user recordable unit enables the recording of any type of content such as voice or music that can be played back at CD quality output at SPL’s of up to 102dB(A) at 1 metre. This content can be reproduced repeatedly, alternating with or without one of the built-in 45 alarm tones. The alarm tone notification has an output of up to 110dB(A) at 1 metre.
For multiple unit installations the recording process is only required once to create a master unit which can then be used to program all other D105AX units on the system, guaranteeing synchronisation during playback, using the supplied ‘Synch’ cable.

  • Direct content storage on non-volatile memory.
  • CD quality reproduction.
  • Message length: 4 × 30 seconds
  • Easy message creation with built in microphone or line-in audio input.
  • Volume controls for user content and alarm tones.
  • Available with custom tone configurations and frequencies.
  • 5J Xenon strobe beacon capable of 200cd*.
  • Factory programming of user supplied content also available.
  • UL approved for general signalling use.

Specification

Voice content output: 101dB(A) @ 1 metre [92dB(A) @ 10ft/3m]
Music content output: 102dB(A) @ 1 metre [93dB(A) @ 10ft/3m]
Alarm tone output: 110dB(A) @ 1 metre [101dB(A) @ 10ft/3m]
No. of alarm tones: 45 (UKOOA/PFEER compliant)
No. of messages: 4 (30 seconds each)
Volume controls: Independent controls for user recorded content and built-in alarm tones.
Effective range: 60m/197ft @ 1KHz
Voltages DC: 24vdc (10-30vdc)
Ingress protection: Type 4 / 4X / 3R / 13, IP66
Rating: Continuous
Enclosure material: Marine grade aluminium A1 Si12 Cu
Enclosure colour: RAL3000 Red, RAL7038 Grey
Fixings: Stainless Steel
Cable entries: 2 x M20 x 1.5mm threaded gland entries.
Supplied with one stopping plug.
Terminals: 0.5 to 2.5mm²
Operating temp: -25° to +55°C [-13° to +131°F]
Storage temp: -40° to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 1.60kg/3.52Ibs

Current Consumption

Version: Voltage: Current :
24V dc 10-30V dc 256mA*
* current at nominal voltage on Tone 1

Part Codes

Version: Part code:
10-30V dc D105AXDC024[x]-UL
[x] = Enclosure colour: G: Grey R: Red

Approvals

  • UL & cULs approved: General signalling use
  • EAC approved (GOST-R)

Tone Table

Stage 1 WAV file Frequency Description Stg 2 Stg 3 Stg 4
T 1 340 Hz Continuous T 2 T 5 T 29
T 2 800/1000Hz @ 0.25 sec Alternating T 17 T 5 T 29
T 3 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 2 T 5 T 29
T 4 800/1000Hz @ 1Hz Sweeping T 6 T 5 T 29
T 5 2400Hz Continuous T 3 T 20 T 29
T 6 2400/2900Hz @ 7Hz Sweeping T 7 T 5 T 29
T 7 2400/2900Hz @ 1Hz Sweeping T 10 T 5 T 29
T 8 500/1200/500Hz @ 0.3Hz Sweeping T 2 T 5 T 29
T 9 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 15 T 2 T 29
T 10 2400/2900Hz @ 2Hz Alternating T 7 T 5 T 29
T 11 1000Hz @ 1Hz Intermittent T 2 T 5 T 29
T 12 800/1000Hz @ 0.875Hz Alternating T 4 T 5 T 29
T 13 2400Hz @ 1Hz Intermittent T 15 T 5 T 29
T 14 800Hz 0.25sec on, 1 sec off Intermittent T 4 T 5 T 29
T 15 800Hz Continuous T 2 T 5 T 29
T 16 660Hz 150mS on, 150mS off Intermittent T 18 T 5 T 29
T 17 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 2 T 27 T 29
T 18 660Hz 1.8sec on, 1.8sec off Intermittent T 2 T 5 T 29
T 19 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 T 2 T 5 T 29
T 20 660Hz Continuous T 2 T 5 T 29
T 21 554Hz/440Hz @ 1Hz Alternating T 2 T 5 T 29
T 22 544Hz @ 0.875 sec. Intermittent T 2 T 5 T 29
T 23 800Hz @ 2Hz Intermittent T 6 T 5 T 29
T 24 800/1000Hz @ 50Hz Sweeping T 29 T 5 T 29
T 25 2400/2900Hz @ 50Hz Sweeping T 29 T 5 T 29
T 26 Bell T 2 T 15 T 29
T 27 554Hz Continuous T 26 T 5 T 29
T 28 440Hz Continuous T 2 T 5 T 29
T 29 800/1000Hz @ 7Hz Sweeping T 7 T 5 T 29
T 30 300Hz Continuous T 2 T 5 T 29
T 31 660/1200Hz @ 1Hz Sweeping T 26 T 5 T 29
T 32 Two T chime. T 26 T 15 T 29
T 33 745Hz @ 1Hz Intermittent T 2 T 5 T 29
T 34 1000 & 2000Hz @ 0.5 sec Alternating – Singapore T 38 T 45 T 29
T 35 420Hz @ 0.625 sec Australian Alert T 36 T 5 T 29
T 36 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 35 T 5 T 29
T 37 1000Hz Continuous – PFEER Toxic Gas T 9 T 45 T 29
T 38 2000Hz Continuous T 34 T 45 T 29
T 39 800Hz 0.25sec on, 1 sec off Intermittent T 23 T 17 T 29
T 40 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 31 T 27 T 29
T 41 Motor Siren – slow rise to 1200 Hz T 2 T 5 T 29
T 42 Motor Siren – slow rise to 800 Hz T 2 T 5 T 29
T 43 1200 Hz Continuous T 2 T 5 T 29
T 44 Motor Siren – slow rise to 2400 Hz T 2 T 5 T 29
T 45 1KHz 1s on, 1s off Intermittent – PFEER Gen. Alarm T 38 T 34 T 29
Country specific or custom tone configurations and alarm frequencies are available upon request.
