| Datasheet | Datasheet.pdf |
| Installation Manual | ISN0605-C__SON4_.pdf |
| EC CPR Certificate | 0786-CPD-20190_SON4.pdf |
| Russian EAC Declaration of Conformity | D-GB.GA05.B.12595-20-24.03.2025.pdf |
| Russian Maritime register | 19.00193.278.pdf |
| Declaration of Conformity | DC-024_Issue_H_Sonora.pdf |
| Declaration of Performance | DP_-_0786-CPD-20190-Issue_A_SON4__SON4B__SON4L.pdf |
| 2D drawing (PDF) | SK0270_Issue_A.pdf |
| 2D drawing (DWG) | SK0270_Issue_A.dwg |
| 3D drawing (STEP) | D246-05-205-3D_Issue_A.STEP |

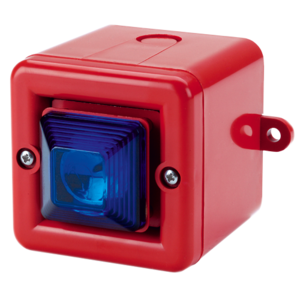

| Hi-res product image 1 (TIFF) | 2-31-040_SON4-R-B.tif |
| Hi-res product image 2 (TIFF) | 2-31-040_SON4-G-R.tif |
| Sounder: | ||
|---|---|---|
| Maximum output: | 104dB(A) @ 1 metre [95dB(A) @ 10ft/3m] | |
| Nominal output: | 100dB(A) @ 1m +/- 3dB – Tone 2 [91dB(A) @ 10ft/3m] | |
| No. of tones: | 32 (UKOOA / PFEER compliant) | |
| No. of stages: | 3 | |
| Volume control: | 3 levels via on board switch | |
| Effective range: | 32m/105ft @ 1KHz | |
| Stage switching: | Reverse polarity stage switching on DC units. | |
| Beacon: | ||
| Energy: | 0.5 Joules | |
| Flash rate: | 1 Hz (60fpm) | |
| Peak Candela: | 50,000 cd – calculated from energy (J) | |
| Effective Intensity cd: | 25 cd – calculated from energy (J) | |
| Peak Candela: | 5,038 cd* – measured ref. to I.E.S. | |
| Effective Intensity cd: | 11 cd* – measured ref. to I.E.S. | |
| Lens colours: | Amber, Blue & Red | |
| General: | ||
| Voltages DC: | 24V dc (18-30V dc) | |
| Reverse polarity diode protection on DC units. | ||
| Voltages AC: | 24V ac; 115V ac; 230V ac | |
| Ingress protection: | IP66 | |
| Housing material: | High impact UL94 V0 & 5VA FR ABS | |
| Colour: | Red (RAL3000), grey (RAL7038) & white. | |
| Lens material: | PC | |
| Cable entries: | 4 x M20 clearance gland knockouts in side & back | |
| Terminals: | 0.5 to 1.5mm² cables. | |
| Operating temp: | -25 to +55°C [-13° to +131°F] | |
| Storage temp: | -40 to +70°C [-40° to +158°F] | |
| Relative humidity: | 90% at 20°C [68°F] | |
| Weight: | DC: 0.30kg/0.66Ibs AC:0.40kg/0.88Ibs | |
| *SPL data +/-3dB(A). Measured at optimum voltage. | ||
| *Candela measurements representative of performance with amber lens at optimum voltage. | ||
| Version: | Part code: |
|---|---|
| 24V dc | SON4DC24[x]/[y] |
| 24V ac | SON4AC24[x]/[y] |
| 115V ac | SON4AC115[x]/[y] |
| 230V ac | SON4AC230[x]/[y] |
| [x] = Enclosure colour: | G: Grey (RAL7038) R: Red (RAL3000) W: White |
| [y] = Lens colour: | A: Amber B: Blue R: Red |
| Version: | Voltage: | Current: |
|---|---|---|
| 24V dc | 18-30V dc | 80-110mA |
| 24V ac 50/60Hz | +/-10% | 90-135mA |
| 115V ac 50/60Hz | +/-10% | 35mA |
| 230V ac 50/60Hz | +/-10% | 20mA |
| Stage 1 | WAV file | Frequency Description. | Stg 2 | Stg 3 |
|---|---|---|---|---|
| T 1 |   |
340 Hz Continuous | T 2 | T 5 |
| T 2 | |
800/1000Hz @ 0.25 sec Alternating | T 17 | T 5 |
| T 3 | |
500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop | T 2 | T 5 |
| T 4 | |
800/1000Hz @ 1Hz Sweeping | T 6 | T 5 |
| T 5 | |
2400Hz Continuous | T 3 | T 26 |
| T 6 | |
2400/2900Hz @ 7Hz Sweeping | T 7 | T 5 |
| T 7 | |
2400/2900Hz @ 1Hz Sweeping | T 10 | T 5 |
| T 8 | |
500/1200/500Hz @ 0.3Hz Sweeping | T 2 | T 5 |
| T 9 | |
1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. | T 15 | T 2 |
| T 10 | |
2400/2900Hz @ 2Hz Alternating | T 7 | T 5 |
| T 11 | |
1000Hz @ 1Hz Intermittent | T 2 | T 5 |
| T 12 | |
800/1000Hz @ 0.875Hz Alternating | T 4 | T 5 |
| T 13 | |
2400Hz @ 1Hz Intermittent | T 15 | T 5 |
| T 14 | |
800Hz 0.25sec on, 1 sec off Intermittent | T 4 | T 5 |
| T 15 | |
800Hz Continuous | T 2 | T 5 |
| T 16 | |
660Hz 150mS on, 150mS off Intermittent | T 18 | T 5 |
| T 17 | |
544Hz (100mS)/440Hz (400mS) – NF S 32-001 | T 2 | T 27 |
| T 18 | |
660Hz 1.8sec on, 1.8sec off Intermittent | T 2 | T 5 |
| T 19 | |
1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 | T 2 | T 5 |
| T 20 | |
660Hz Continuous | T 2 | T 5 |
| T 21 | |
554Hz/440Hz @ 1Hz Alternating | T 2 | T 5 |
| T 22 | |
544Hz @ 0.875 sec. Intermittent | T 2 | T 5 |
| T 23 | |
800Hz @ 2Hz Intermittent | T 6 | T 5 |
| T 24 | |
800/1000Hz @ 50Hz Sweeping | T 29 | T 5 |
| T 25 | |
2400/2900Hz @ 50Hz Sweeping | T 29 | T 5 |
| T 26 | |
Bell | T 2 | T 15 |
| T 27 | |
554Hz Continuous | T 26 | T 5 |
| T 28 | |
440Hz Continuous | T 2 | T 5 |
| T 29 | |
800/1000Hz @ 7Hz Sweeping | T 7 | T 5 |
| T 30 | |
420Hz @ 0.625 sec Australian Alert | T 32 | T 26 |
| T 31 | |
660/1200Hz @ 1Hz Sweeping | T 26 | T 5 |
| T 32 | |
500-1200Hz 3.75sec /0.25sec. Australian Evac. | T 30 | T 26 |
| Country specific or custom tone configurations and alarm frequencies are available upon request. | ||||
