GNExC1 Xenon Strobe & Alarm Horn Combination 1-23-110

Description

The GNExC1 is comprised of the GNExB1X05 beacon producing over 117cd effective – a high output Xenon strobe flash required for safety signalling and either the GNExS1F, GNExS1R or GNExS2F alarm horn sounder. The beacon features a field replaceable colour filter which enhances the strobe and is constructed from UV stable PC. The alarm horn sounder offer sound level outputs of up to 123dB(A) at 1 metre with a choice of 64 alarm tones. The optional GNExS1R alarm horn provides a compact audible solution distributing the warning signal omni-directionally.

The GRP enclosures features a threaded flame path and large termination area – all of which significantly reduce installation time. The 316 stainless steel mounting plate can be surface mounted and is also supplied with pole mounting hardware. SIL1 compliant to IEC61508 (2010) as standard.

Downloads

Datasheet	Datasheet.pdf
Installation manual - GNExC1	D208-00-125-IS_Issue_3.pdf
IECEx certificate - GNExB1X05	IECEx_ULD_15.0003X_Issue_2_GNExB.pdf
IECEx certificate - GNExS1F/S1R/S2F	IECEx_SIR_13.0029X_Issue_1_GNExS_L.pdf
ATEX certificate - GNExB1X05	DEMKO_15ATEX1448X_Issue_3_GNExB.pdf
ATEX certificate - GNExS1F/S1R/S2F	Sira_13ATEX1139X_Issue_2_GNExS_L.pdf
INMETRO certificate - GNExB1X05	CoC_IEx_20.0049X_Rev_0_GNExB..._GNExJ2.pdf
INMETRO certificate - GNExS1F/S1R/S2F	CoC_IEx_20.0050X_Rev_0_GNExS...GNExL.pdf
Russian Ex certificate - GNExB1X05	__RU_C_GB.71.B.00109.pdf
Russian Ex certificate - GNExS1F/S1R/S2F	KZ.1510019.22.01.00271.pdf
Declaration of Conformity	DC-072_Issue_D_GNEx_Plate.pdf
SIL1 Certificate	T900-123-1_Beacons_SIL1.pdf
SIL1 Certificate	T901-124_Sounders_SIL1.pdf
2D drawing (PDF)	D208-05-125_Issue_B.PDF
2D drawing (DWG)	D208-05-125_Issue_B.DWG
3D drawing (STEP) - GNExC1 with GNExS1R alarm horn	D208-05-125-R-3D_Issue_1.STEP
3D drawing (STEP) - GNExC1 with GNExS1F alarm horn	D208-05-125-S1-3D_Issue_1.STEP
Wiring Schematic	D208-06-125_Issue_1.PDF

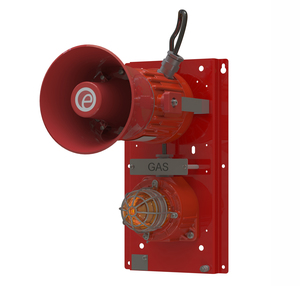

Lo-res product image 1 (JPG)	D208-00-125-IM_Issue_1_GNExC1-A-S1F-Red.JPG
Lo-res product image 2 (JPG)	D208-00-125-IM_Issue_1_GNExC1-B-S1R-Red.jpg

Features

Robust, corrosion proof GRP (glass reinforced polyester) enclosure
316 (A4) stainless steel mounting plate
Glass lens & Stainless Steel guard
UV stable PC field replaceable lens colour filter
Stainless steel fixings
Ingress protection IP66/67
Automatic synchronisation of beacon & alarm horn
User replaceable Xenon tube mechanically secured
Xenon beacon DC version features a choice of three flash rates
Alarm horn independent selectable tones for 1st & 2nd stages.
Alarm horn four remotely switched stages/channels.

Specification

Xenon Strobe Beacon:	GNExB1X05
Energy:	5 Joules (5Ws)
Flash rate:	DC voltages: 1Hz (60fpm), 1.5Hz (90fpm) & double flash AC voltages: 1Hz (60fpm)
Peak Candela:	500,000 cd – calculated from energy (J)
Eff. Intensity cd:	250 cd – calculated from energy (J)
Peak Candela:	45,449 cd – measured ref to I.E.S
Eff. Intensity cd:	117.93 cd – measured ref to I.E.S
Lens colours:	Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life:	Emissions are reduced to 70% after 8 million flashes
Alarm Horn Sounder:	GNExS1F/S1R/S2F
Max. SPL GNExS1R:	115dB(A) @ 1 metre [106dB(A) @ 10ft/3m]
Max. SPL GNExS1F:	117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
Nom. SPL GNExS1F/R:	110dB(A) @ 1m +/- 3dB [101dB(A) @ 10ft/3m]
Max. SPL GNExS2F:	123dB(A) @ 1 metre [114dB(A) @ 10ft/3m]
Nom. SPL GNExS2F:	117dB(A) @ 1m +/- 3dB [108dB(A) @ 10ft/3m]
No. of tones:	64 (UKOOA / PFEER compliant)
General:	Common component features:
Voltages DC:	24V dc; 48V dc
Voltages AC:	115V ac; 230V ac
Line monitoring:	Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted
Ingress protection:	IP66/67
Enclosure matl.:	UV stable GRP (glass reinforced polyester)
Mounting plate:	316 (A4) Stainless Steel
Colour:	Natural Red – can be provided in alternative colours
Cable entries:	1 x M20 ISO – adaptor to M25, 1/2" or 3/4" NPT can be specified
Stopping plugs:	Brass/Nickel Plated/Stainless Steel plugs included
Grnd/Earth stud:	M6
Terminals:	0.5 – 2.5mm² (20-14 AWG)
Enclosure volume:	<2 litres
Certified temp:	-50 to +70°C [-58°F to +158°F]
Storage temp:	-50 to +70°C [-58°F to +158°F]
Relative humidity:	95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
*All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Version:	Voltage Range:	Xenon Beacon GNExB1X05 Current:	Alarm Horn GNExS1F/S1R Current:	Alarm Horn GNExS2F Current:
24V dc	20-28V dc	254mA	140mA	811mA
48V dc	42-54V dc	158mA	73mA	434mA
115V ac 50/60Hz	110-125V ac	95mA	86mA	297mA
230V ac 50/60Hz	220-240V ac	54mA	75mA	196mA

Part Codes

Part Code:	Ident.:	Description:
Product type:	GNExC1	Combined Xenon Strobe Beacon & Alarm Horn Sounder
Junction box option:	N2	316 Stainless Steel back plate – No junction box
Xenon Beacon	1A 1B 1C 1G 1M 1R 1Y	GNExB1X05 5 Joule Strobe – Amber GNExB1X05 5 Joule Strobe – Blue GNExB1X05 5 Joule Strobe – Clear GNExB1X05 5 Joule Strobe – Green GNExB1X05 5 Joule Strobe – Magenta GNExB1X05 5 Joule Strobe – Red GNExB1X05 5 Joule Strobe – Yellow
Alarm Horn Sounder:	S1F S1R S2F	GNExS1F alarm horn sounder – 117dB(A) GNExS1R alarm horn sounder – 115dB(A) GNExS2F alarm horn sounder – 123dB(A)
Voltage:	AC115 AC230 DC024 DC048	115-120V ac 50/60Hz 220-230V ac 50/60Hz 24V dc 48V dc
Cable entries: [e]	A E F G	1 x M20x1.5 1 × 1/2"NPT 1 × 3/4" NPT 1 x M25x1.5
Stopping plug material: [m]	B N S	Brass Nickel Plated Stainless Steel
Lens guard matl. & tag: [s]	1 2 3 4	A2 304 Stainless Steel with Equip. Tag A4 316 Stainless Steel with Equip. Tag A2 304 St/St with Equip. Tag & Duty Labels A4 316 St/St with Equip. Tag & Duty Labels
Version: [v]	A1 T1 W1 Z1 V1	IECEx & ATEX Tropicalised Special wiring Special software Custom configuration
Enclosure: [x]	R S	Red RAL3000 Special
Example:	GNExC1 N2 1R S1F DC024 A B 1 A1 R GNExC1 Combined assembly with 1 x GNxB1X05 Xenon Strobe beacon with red lens, GNExS1F Alarm Horn Sounder, 1 x M20x1.5 entry with brass stopping plugs, IECEx & ATEX approved in a red enclosure

Approvals

IECEx UL 15.0003X, IECEx SIR 13.0029X
ATEX DEMKO 15ATEX1448X, SIRA 13ATEX1139X
Ex EAC TR CU 012/2011: KZ.1510019.22.01.00271, RU C-GB.AA71.B.00109
INMETRO IEx 20.0050X

Assemblies

The GNExC1 combined Xenon Strobe and Alarm Horn Sounder is also available in the Alarm Bar configuration with dual Xenon Strobe beacons. Higher levels of light output are features of the GNExC2 combined signal and alarm bar, available featuring 10, 15 and 21 Joule Xenon beacons or multi-function high output LED. For applications only requiring visual signals see the GNExP1 and GNExP2 alarm bars – featuring combinations of Xenon Strobe and LED beacons.

Coding

GNExB1X05	5 Joule Xenon beacon component
IECEx/ATEX	II 2G Ex db IIC Gb T6 Ta -50°C to +40°C II 2G Ex db IIC Gb T5 Ta -50°C to +55°C II 2G Ex db IIC Gb T4 Ta -50°C to +70°C
GNExS1R/S1F	115/117dB(A) Alarm horn sounder
IECEx/ATEX	II 2G Ex d IIC T4 Ta. -60° to +50°C II 2G Ex d IIC T3 Ta. -60° to +70°C II 2G Ex d IIB T6 Ta. -60° to +50°C II 2G Ex d IIB T5 Ta. -60° to +65°C II 2G Ex d IIB T4 Ta. -60° to +70°C
GNExS2F	123dB(A) Alarm horn sounder
IECEx/ATEX	II 2G Ex d IIC T4 Ta. -60° to +50°C II 2G Ex d IIC T3 Ta. -60° to +58°C II 2G Ex d IIB T6 Ta. -60° to +50°C II 2G Ex d IIB T5 Ta. -60° to +58°C

Effective Candela lens colour factor

Amber	Blue	Clear	Green	Red	Yellow
0.51	0.12	1.00	0.49	0.15	0.86

Tone Table

Stage 1	WAV file	Frequency Description.	Stage 2	Stage 3	Stage 4
T 1	/system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV	1000 Continuous – PFEER Toxic Gas	Any	T 2	T 44
T 2	/system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV	1200/500 @ 1Hz Sweeping – DIN / PFEER P.T.A.P.	Any	T 3	T 44
T 3	/system/1/assets/files/000/000/412/412/fa8b418f9/original/TF045.WAV	1000 @ 0.5Hz (1s on, 1s off) Intermittent – PFEER Gen. Alarm	Any	T 2	T 44
T 4	/system/1/assets/files/000/000/383/383/11797b764/original/TF019.WAV	1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s – NF C 48-265	Any	T 24	T 1
T 5	/system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV	544(100mS)/440 (400mS) – NF S 32-001	Any	T 19	T 1
T 6	/system/1/assets/files/000/000/947/947/8f040484a/original/TF053.wav	1500/500 – (0.5s on , 0.5s off) x3 + 1s gap – AS4428	Any	T 44	T 1
T 7	/system/1/assets/files/000/000/944/944/890010fd0/original/TF054.wav	500-1500Hz Sweeping 2 sec on 1 sec off – AS4428	Any	T 44	T 1
T 8	/system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV	500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) – NEN 2575	Any	T 24	T 35
T 9	/system/1/assets/files/000/000/953/953/5deedc543/original/TF055.wav	1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a	Any	T 34	T 1
T 10	/system/1/assets/files/000/000/952/952/3a041fde3/original/TF056.wav	1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a	Any	T 34	T 1
T 11	/system/1/assets/files/000/000/946/946/761de34c6/original/TF057.wav	420(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal	Any	T 1	T 8
T 12	/system/1/assets/files/000/000/945/945/689d9405a/original/TF058.wav	1000(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal	Any	T 1	T 8
T 13	/system/1/assets/files/000/000/950/950/2d337d14e/original/TF059.wav	422/775 – (0.85 on, 0.5 off) x3 + 1s gap – NFPA Temporal	Any	T 1	T 8
T 14	/system/1/assets/files/000/000/399/399/84b54dafb/original/TF034.WAV	1000/2000 @ 1Hz – Singapore	Any	T 3	T 35
T 15	/system/1/assets/files/000/000/393/393/744c6f53f/original/TF030.WAV	300 Continuous	Any	T 24	T 35
T 16	/system/1/assets/files/000/000/391/391/5f7a58b54/original/TF028.WAV	440 Continuous	Any	T 24	T 35
T 17	/system/1/assets/files/000/000/948/948/c697b364a/original/TF060.wav	470 Continuous	Any	T 24	T 35
T 18	/system/1/assets/files/000/000/949/949/7e429e658/original/TF061.wav	500 Continuous – IMO code 2 (Low)	Any	T 24	T 35
T 19	/system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV	554 Continuous	Any	T 24	T 35
T 20	/system/1/assets/files/000/000/384/384/5c30f9f4d/original/TF020.WAV	660 Continuous	Any	T 24	T 35
T 21	/system/1/assets/files/000/000/380/380/06feaa7b3/original/TF015.WAV	800 Continuous – IMO code 2 (High)	Any	T 24	T 35
T 22	/system/1/assets/files/000/000/406/406/49b88184e/original/TF043.WAV	1200 Continuous	Any	T 24	T 35
T 23	/system/1/assets/files/000/000/407/407/ecce63f4f/original/TF038.WAV	2000 Continuous	Any	T 3	T 35
T 24	/system/1/assets/files/000/000/421/421/b578af8a9/original/TF005.WAV	2400 Continuous	Any	T 20	T 35
T 25	/system/1/assets/files/000/000/951/951/d9ce2b2c6/original/TF062.wav	440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent	Any	T 44	T 8
T 26	/system/1/assets/files/000/000/954/954/b703d99f1/original/TF063.wav	470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent	Any	T 44	T 8
T 27	/system/1/assets/files/000/000/955/955/0f602886a/original/TF064.wav	470 @ 5Hz (0.10s on, 0.10s off) Intermittent	Any	T 44	T 8
T 28	/system/1/assets/files/000/000/956/956/dbb5f64db/original/TF065.wav	544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent	Any	T 24	T 8
T 29	/system/1/assets/files/000/000/957/957/7bd3d8c1c/original/TF066.wav	655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent	Any	T 44	T 8
T 30	/system/1/assets/files/000/000/397/397/d6d84d0c3/original/TF018.WAV	660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent	Any	T 24	T 8
T 31	/system/1/assets/files/000/000/381/381/93f51c79a/original/TF016.WAV	660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent	Any	T 24	T 8
T 32	/system/1/assets/files/000/000/410/410/a0f0ba2a6/original/TF033.WAV	745 @ 1Hz (0.50s on, 0.50s off) Intermittent	Any	T 24	T 8
T 33	/system/1/assets/files/000/000/379/379/51c1bb5a9/original/TF014.WAV	800 (0.25s on, 1.00s off) Intermittent	Any	T 24	T 8
T 34	/system/1/assets/files/000/000/388/388/b4cf9203e/original/TF023.WAV	800 @ 2Hz (0.25s on, 0.25s off) – IMO code 3.a (High)	Any	T 24	T 8
T 35	/system/1/assets/files/000/000/377/377/ac5498db0/original/TF011.WAV	1000 @ 1Hz (0.50s on, 0.50s off) Intermittent	Any	T 24	T 8
T 36	/system/1/assets/files/000/000/378/378/6380218ec/original/TF013.WAV	2400 @ 1Hz (0.50s on, 0.50s off) Intermittent	Any	T 24	T 8
T 37	/system/1/assets/files/000/000/958/958/a90e62da4/original/TF067.wav	2900 @ 5Hz (0.10s on, 0.10s off) Intermittent	Any	T 24	T 8
T 38	/system/1/assets/files/000/000/959/959/f34b52faa/original/TF068.wav	363/518 @ 1Hz (0.50s / 0.50s) Alternating	Any	T 8	T 19
T 39	/system/1/assets/files/000/000/960/960/368703340/original/TF069.wav	450/500 @ 2Hz (0.25s / 0.25s) Alternating	Any	T 8	T 19
T 40	/system/1/assets/files/000/000/385/385/a85a0a356/original/TF021.WAV	554/440 @ 1Hz (0.50s / 0.50s) Alternating	Any	T 24	T 19
T 41	/system/1/assets/files/000/000/961/961/be2680966/original/TF070.wav	554/440 @ 0.65Hz (0.76s / 0.76s) Alternating	Any	T 8	T 19
T 42	/system/1/assets/files/000/000/962/962/314fe8a1b/original/TF071.wav	561/760 @ 0.83Hz (0.60s / 0.60s) Alternating	Any	T 8	T 19
T 43	/system/1/assets/files/000/000/963/963/5f6deb8a1/original/TF072.wav	780/600 @ 0.96Hz (0.52s / 0.52s) Alternating	Any	T 8	T 19
T 44	/system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV	800/1000 @ 2Hz (0.25s / 0.25s) Alternating	Any	T 24	T 19
T 45	/system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV	970/800 @ 2Hz (0.25s / 0.25s) Alternating	Any	T 8	T 19
T 46	/system/1/assets/files/000/000/375/375/771bd7a3e/original/TF012.WAV	800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating	Any	T 24	T 19
T 47	/system/1/assets/files/000/000/374/374/021ee6540/original/TF010.WAV	2400/2900 @ 2Hz (0.25s / 0.25s) Alternating	Any	T 24	T 19
T 48	/system/1/assets/files/000/000/965/965/e3d76c24c/original/TF073.wav	500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping	Any	T 24	T 12
T 49	/system/1/assets/files/000/000/964/964/4e1cd3f7f/original/TF074.wav	560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping	Any	T 24	T 12
T 50	/system/1/assets/files/000/000/966/966/a8e5f4440/original/TF075.wav	560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping	Any	T 24	T 12
T 51	/system/1/assets/files/000/000/969/969/5734194b1/original/TF076.wav	600/1250 @ 0.125Hz (4s / 4s) Sweeping	Any	T 24	T 12
T 52	/system/1/assets/files/000/000/394/394/1bfee2f1b/original/TF031.WAV	660/1200 @ 1Hz (0.50s / 0.50s) Sweeping	Any	T 24	T 12
T 53	/system/1/assets/files/000/000/420/420/50f9ee7a7/original/TF004.WAV	800/1000 @ 1Hz (0.50s / 0.50s) Sweeping	Any	T 24	T 12
T 54	/system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV	800/1000 @ 7Hz (0.07s / 0.07s) Sweeping	Any	T 24	T 12
T 55	/system/1/assets/files/000/000/389/389/68683d240/original/TF024.WAV	800/1000 @ 50Hz (0.01s / 0.01s) Sweeping	Any	T 24	T 12
T 56	/system/1/assets/files/000/000/422/422/42b72dd93/original/TF006.WAV	2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping	Any	T 24	T 12
T 57	/system/1/assets/files/000/000/373/373/a686b0abe/original/TF007.WAV	2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping	Any	T 24	T 12
T 58	/system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV	2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping	Any	T 24	T 12
T 59	/system/1/assets/files/000/000/967/967/2e92dbc46/original/TF077.wav	2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping	Any	T 24	T 12
T 60	/system/1/assets/files/000/000/968/968/5dfcb9aea/original/TF078.wav	2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping	Any	T 24	T 12
T 61	/system/1/assets/files/000/000/408/408/e0fadcdd2/original/TF042.WAV	800Hz Motor Siren	Any	T 24	T 12
T 62	/system/1/assets/files/000/000/404/404/1c1741943/original/TF041.WAV	1200Hz Motor Siren	Any	T 24	T 12
T 63	/system/1/assets/files/000/000/409/409/590aa5e82/original/TF044.WAV	2400Hz Motor Siren	Any	T 24	T 12
T 64	/system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV	Simulated Bell	Any	T 21	T 12
For Stage 2 any Stage 1 alarm tone sound can be selected.
Country specific or custom tone configurations and alarm frequencies are available upon request.
