SONFL1H Alarm Horn Sounder & LED Beacon 2-31-060

Product image
Product Image
Product Image

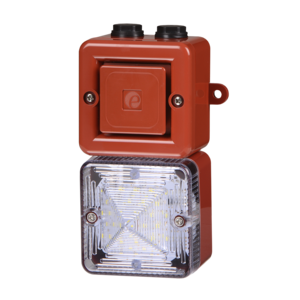

The SONFL1H features the 100dB(A) SONF1 alarm horn sounder combined with the L101H LED beacon. The compact, robust housing is ideal for all general signalling applications including fire, security and process control.
Request a quote for this product
Voltage
Back box/cable entries
Stopping plug material
Equip. tag/Duty label
Product version
Product option
Enclosure
Lens colour
Part Number:
SONFL1H
Request Price or enquire about this product
Enquire about
Alarm Horn Sounder & LED Beacon

Upgraded Product:

  • Upgrade to current SONFL1H
  • Array of high output 18 x Cree© SMT White LED
  • Dual cable entries with stopping plugs
  • Globally approved for fire and general signalling

Description

The array of 18 high output LED’s generates over 113 candela of light output and can be user set to either steady or a choice of seven flashing modes. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.

Downloads

Datasheet Datasheet.pdf
Installation Manual D242-00-601-IS_Issue_3__SONFL1H_.pdf
UL certificate of compliance UL_CoC_-_20211202-S7995_SON__D112__DL112.pdf
Russian EAC Declaration of Conformity D-GB.G05..12595-20-24.03.2025.pdf
CSFM Listing CSFM_Listing_2279-0511_SONF_2025.pdf
Russian Fire certificate EAC_Certificate_043_TR_CU-.00291.pdf
Russian Maritime register 19.00193.278.pdf
Declaration of Conformity DC-057_Issue_H_SONFL1X__SONFL1H.pdf
2D drawing (PDF) D242-05-501_Issue_A.pdf
2D drawing (DWG) D242-05-501_Issue_A.dwg
3D drawing (STEP) D242-05-501-3D_Issue_A.STEP
Wiring Schematic D242-06-601_Issue_A.pdf

Features

  • Automatic synchronisation
  • Continuously rated
  • Back box options with and without mounting lugs
  • Dual M20, 1/2"NPT clearance cable entries option
  • Duplicate cable terminations
  • Ingress protection IP66 Type 3R/13
  • 7 user selectable flash rates plus steady mode
  • 10 alarm tone frequencies with second remotely activated alarm stage
  • Available with custom tone configurations and frequencies
  • Diode polarized for use in supervised circuits

Specification

Alarm Horn:
Maximum output: 103dB(A) @ 1 m ±3dB
[94dB(A) @ 10ft/3m ±3dB]
Nominal output: 101dB(A) @ 1m ±3dB
[92dB(A) @ 10ft/3m ±3dB]
No. of tones: 10 (UKOOA / PFEER compliant)
No. of stages: 2 (AC voltage variants 1 stage)
Volume control: -12dB(A) tone dependent
Effective range: 38m/124ft @ 1KHz
Voltages DC: 12Vdc, 24Vdc
Voltages AC: 115Vac; 230Vac
Stage switching: Negative (common positive)
L.E.D Beacon:
Light source: High intensity L.E.D. array.
18 x Cree© SMT White LED
High Power Steady: 180 cd – measured ref. to I.E.S.
1Hz Flash cd: 113 cd – measured ref. to I.E.S.
LED life: 60,000 hours
Settings: 1. High Power Steady
2. Blinking – 425ms ON 75ms OFF
3. 1.0Hz (60 fpm) – 200ms ON 800ms OFF
4. 1.33Hz (80fpm) – 150ms ON 600ms OFF
5. Double Flash
6. Triple Flash
7. 2.0Hz (120fpm) – 125ms ON 375ms OFF
8. Temporal Pattern Flash
General:
Ingress protection: IP66 Type 3R/13
Enclosure: High impact UL94 V0 & 5VA FR ABS
Lens colour filter: Field replaceable UV stable PC
Terminals (alarm horn): 0.5 – 1.5mm² (22-16 AWG)
Terminals (beacon): 0.5 – 2.5mm² (20-14 AWG)
Line monitoring: Diode polarized for use in supervised circuits
Operating: -40 to +55°C [-40° to +131°F]
Storage: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Vibration test: 35Hz for a duration 4Hr (UL464A/UL1638A)
Jarring test: 3ft/lb Energy (UL464A/UL1638A)
Impact test: 3x 5lb (UL464A/UL1638A)
MTBF: 93.92 years / 822,706 hours – MIL 217
Weight: 0.50kg / 1.10Ibs

Current Consumption

Product Version: Nominal Voltage: Voltage Range: Beacon Current: Horn Current:
DC024 12Vdc 10-14Vdc 79.5mA 25mA
DC024 24Vdc 20-28Vdc 87mA 25mA
AC115 115Vac ±10% 50/60Hz 34mA 13mA
AC230 230Vac ±10% 50/60Hz 19mA 13mA

Part Codes

Variable: Identifier: Description:
Product type: SONFL1H Combined alarm horn sounder & LED beacon
Voltage: DC024
AC115
AC230
12Vdc (10-14Vdc)/24Vdc (20-28Vdc)
115Vac 50/60Hz
230Vac 50/60Hz
Back box/cable entries: [e] M Back box with mounting lugs
2 x M20, 1/2"NPT clearance
Stopping plug material: [m] A ABS
Equip. tag/Duty label: [s] 0
1
2
No equip. tag or Duty label
316 (A4) St/St Equip. tag/Duty label
Metallised Polyester Equip. tag/Duty label
Product version:
[v]
A UL/cUL, RMRS, EAC, CE, UKCA
Product option:
[o]
1
X
Z
Standard product
Custom configuration – contact E2S
Custom alarm tone software – contact E2S
Enclosure: [x] R
G
W
Red (RAL 3000)
Grey (RAL7038)
White
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow

Approvals

  • UL: UL464A & UL1638A
  • cUL: CSA C22.2 No. 205 – M1983
  • CSFM listing: 7135-2279:0511
  • EAC CU TR 043/2017: B.00291/21
  • EAC: RU D-GB.GA05.B.12595-20
  • RMRS Marine: No. 19.00193.278
  • CE, UKCA

Tone Table

Stage 1 WAV file Frequency Description (DC version) Stage 2
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating T 8
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 8
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001 T 9
T 5 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell T 1
T 6 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping T 8
T 7 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 10
T 8 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas
T 9 /system/1/assets/files/000/000/390/390/10abe0caa/original/TF027.WAV Continuous 554Hz
T 10 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
S1 WAV File Frequency Description (AC version)
T 1 /system/1/assets/files/000/000/419/419/e353c86c4/original/TF002.WAV 800/1000Hz @ 0.25 sec Alternating
T 2 /system/1/assets/files/000/000/417/417/abf396de0/original/TF003.WAV 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop
T 3 /system/1/assets/files/000/000/386/386/ceb4e488c/original/TF009.WAV 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P.
T 4 /system/1/assets/files/000/000/382/382/2c2978b6a/original/TF017.WAV 544Hz (100mS)/440Hz (400mS) – NF S 32-001
T 5 /system/1/assets/files/000/000/405/405/214ccf82a/original/TF037.WAV 1000Hz Continuous – PFEER Toxic Gas
T 6 /system/1/assets/files/000/000/395/395/631e82dc8/original/TF026.WAV Bell
T 7 /system/1/assets/files/000/000/392/392/68d5d1294/original/TF029.WAV 800/1000Hz @ 7Hz Sweeping
T 8 /system/1/assets/files/000/000/398/398/7c1bf5e00/original/TF025.WAV 2400/2900Hz @ 50Hz Sweeping
T 9 /system/1/assets/files/000/000/402/402/9168c8c48/original/TF035.WAV 420Hz @ 0.625 sec Australian Alert
T 10 /system/1/assets/files/000/000/400/400/aba6c8a51/original/TF036.WAV 500-1200Hz 3.75sec /0.25sec. Australian Evac.
Country specific or custom tone configurations and alarm frequencies are available upon request.
